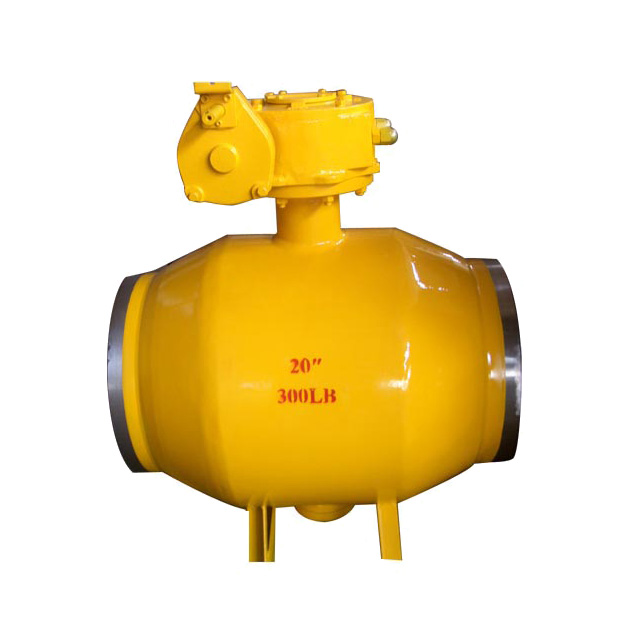

Fully Welded Ball Valve

Welded Ball Valve

Size range : 1/2"-48"
Class: 150LB-300LB, PN16-PN100
Temperature : ≤200 ℃

Materials Available:
Body: ST37.8 / A105 / LF2 / F304 / F316. Etc.
Ball : F304 / F316 ( Option upon request )
Seat: PTFE+C / Nylon / PEEK. etc.

Technical descriptions:

Nominal diameter: Reduced bore (Or Full bore) DN200 to DN 1400 (8" to 56") ;

Nominal Pressure: PN 16 to PN 64 / ANSI Class 150 to Class 300;

Working temperature: -29 ℃ to 200 ℃ (-20℉ to 392℉)

Service: district heating hot water, natural gas, oil, steam, petrochemical .etc.

Operate actuator: lever, gear (Vertical / Horizontal), pneumatic / electrical

Reduced port as below:

Full port as below:


International Certificates & Standards ;

Designed for district heating system , heat transfer piping , oil pipelines and gas industry application ;

Same lifetime as the pipeline system ;

Maintenance-free , no adjustment or lubrication with no running costs ;

Bi-Directional valve.

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
