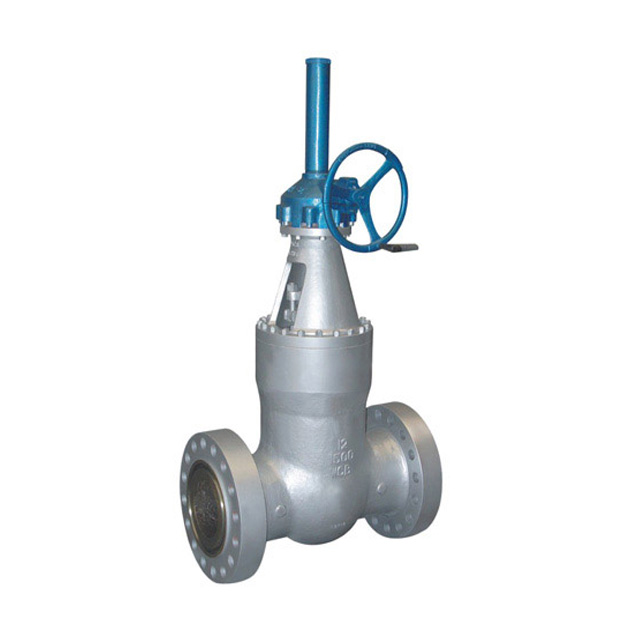

Pressure Sealed Gate Valve

Size range : 2”-14”
Class : 900LB -2500LB
Temperature : ≤425℃

Technical specification
●Design Standard: API 600,API 6D
●Face To Face: ANSI B16.10
●Flange ends: ANSI B16.5
●Test & Inspection: API 598

Features and benefits

● Universal trim: 13Cr stem, wedge in CA 15 or 13Cr faced, and CoCr alloy seat API Trim 8 suitable for applications up to 850°F (454°C).
● Seat face CoCr alloy hardfaced, ground and lapped to a mirror finish.
● Flexible wedge with low center stem wedge contact, in solid CA15 (13Cr)or hardfaced with 13Cr, SS 316, Monel or CoCr alloy. Wedge is ground and lapped to a mirror finish and tightly guided to prevent dragging and seat damage. A CoCr alloy hardfaced CF8M wedge is also available.
● Non-rotating stem with precision Acme threads and burnished finish. Double Acme for faster operation.
● Body and bonnet joint accurately machined.
