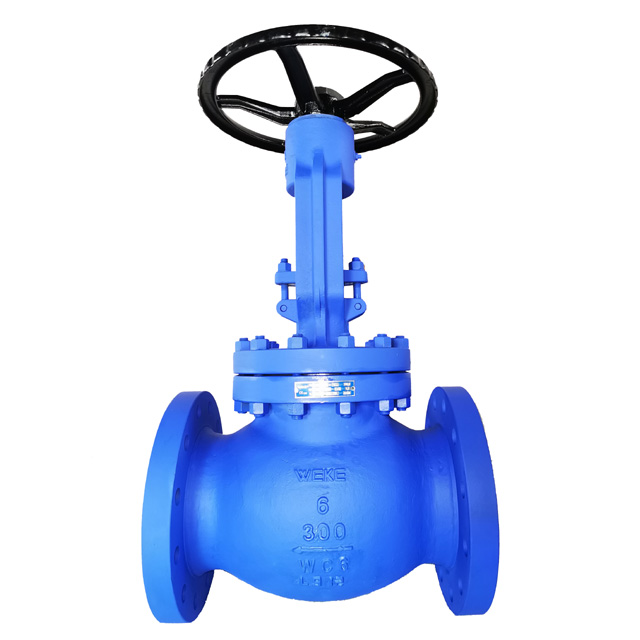

The body and bonnet of Class150~Class900 globe valves are usually bolted bonnet design .And the Class1500~Class2500 globe valves are usually of pressurized seal design.
Gasket of Cover Flange
Stainless steel + flexible graphite wounded gasket is used for Class 150 and Class 300 globe valve.Stainless steel + flexible graphite wounded gasket is used for Class ,and ring joint gasket is also optional for Class 600.Ring joint gasket is used for Class 900 globe valve.Pressurized seal design is used for Class 1500~Class 2500 globe valve.Hand wheel ,impact hand wheel and gear box is usually used for globe valve actuation.Chain wheel and electric actuator can be also used for globe valve actuation if being reguested by the customers.
Packing seal
Molded flexible graphite is used for packing material.PTFE or combined packing material can be also used if being requested by the customer.The internal surface of the stuffing box,of which area is contacted with the packing,is of excellent finish(Ra 3.2um).The stem surface ,contacting with the packing,should be rolled and pressed after being precisely machined,so as to reach to the high finish and compactness(Ra 0.8um)and ensure the reliable tightness of the stem area.If you have any enquiry about quotation or cooperation,please feel free to email us at info@weke-valves.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
