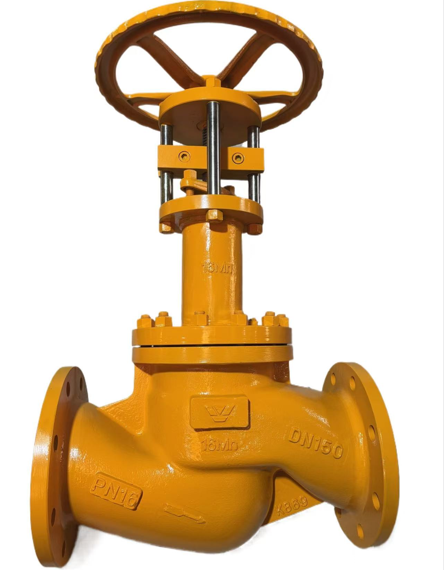

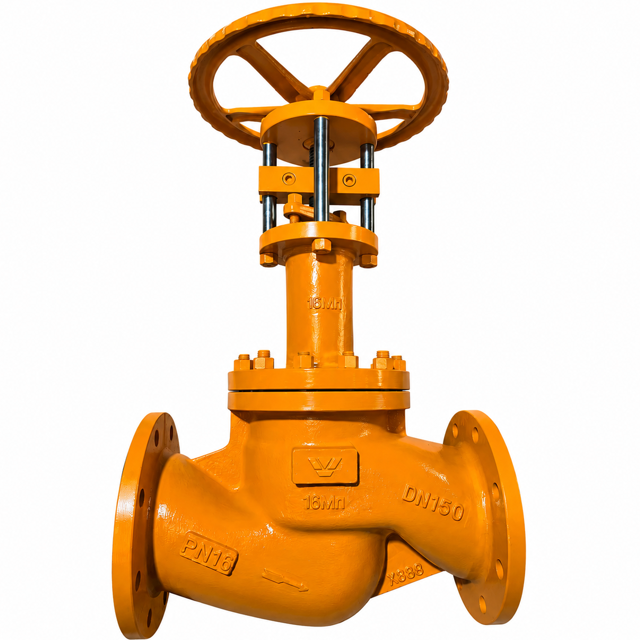

Bellows Globe Valve For Chlorine

Application: Suitable for toxic and hazardous media conditions,

such as dry chlorine, ammonia, etc.
Design features：
1: Zero leakage seal.
Main seal: Bellows assembly seal, with built-in flush-free design,

by hydraulic forming, multi-layer structure, can ensure maximum

life extension, expansion and contraction (open/close) up to 10,000 times

at a pressure of 2.5 MPa.
Auxiliary seal: non-metallic packing, using braided packing with corrosion inhibitor, for added reliability, safety and resistance to high temperatures,

providing a maintenance-free condition.
2: Internal limiting device,Increase the upper limit of the valve stem to

protect the safety of the valve in use, effectively protecting the elastic variables

of the bellows and greatly increasing the service life.
3: Sealing with PTFE, excellent isolation ( Optional Stellite Seal).
4: The bellows is made of special material Hastelloy HC.276.
