德标闸截止

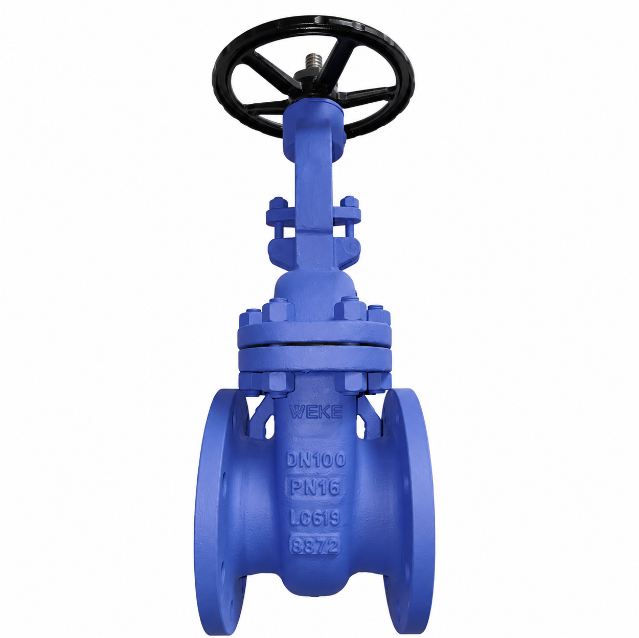

德标闸阀(F4/F5/F7 系列)

系列: F4,F5,F7
口径: DN40-DN600
压力 : PN10-PN100
使用温度 : ≤425℃
阀体材质:GS-C25(1.0619/WCB),1.4308(CF8), 1.4408(CF8M), etc.

性能优势Performance advangate

1. 阀体采用精密铸造工艺,先进的工艺了确保阀体无砂眼,表现光滑,质量更可靠。

The valve body adopts investment casting technology.

Advanced technology to ensure that the valve body has no sand holes, surface more smooth  and quality more reliable.

2. 堆焊阀座,即使在恶劣工况下,也能确保可靠的密封。

Overlay welded seat can keep reliable sealing under severe conditions.

3. 人体工程学设计手轮,使用寿命更长,操作轻松便捷且安全可靠。

Ergonomic hand wheel. It provide longer service life and easier Operation.



设计特征Design feature

明杆Rising stem | 明杆支架式OS&Y

螺栓阀盖Bolt bonnet | 活动闸板Flexible wedge



技术规范TECHNICAL SPECIFICATION

设计标准Design standard: DIN EN 13709:2003

结构长度Face to face dimension: DIN EN 558-1:1995

连接法兰Flanged ends: DIN EN 1092-1:2002

对焊连接Welded ends: DIN EN 12627

试验与检验Test & inspection: DIN EN 12266:2003

应用APPLICATION

热油系统、蒸汽系统、冷热水系统等等

Thermal oil system, steam system, hot and cold water system etc.



如果您对报价或合作有任何疑问,请随时通过以下电子邮件与我们联系 info@weke-valves.com 或使用以下查询表格。 我们的销售代表将在24小时内与您联系。 感谢你对我们产品感兴趣。
